HOME >> products >>GYTA Aluminum Tape Armored Fiber Optic Cable

GYTA Aluminum Tape Armored Fiber Optic Cable

Product name : GYTA Aluminum Tape Armored Fiber Optic Cable Item : LIT-OFC-02 Price :

Details :

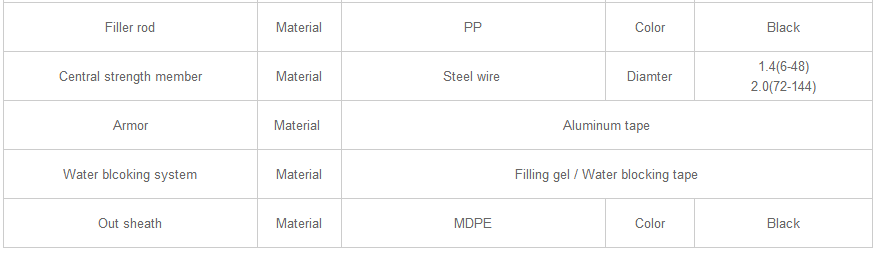

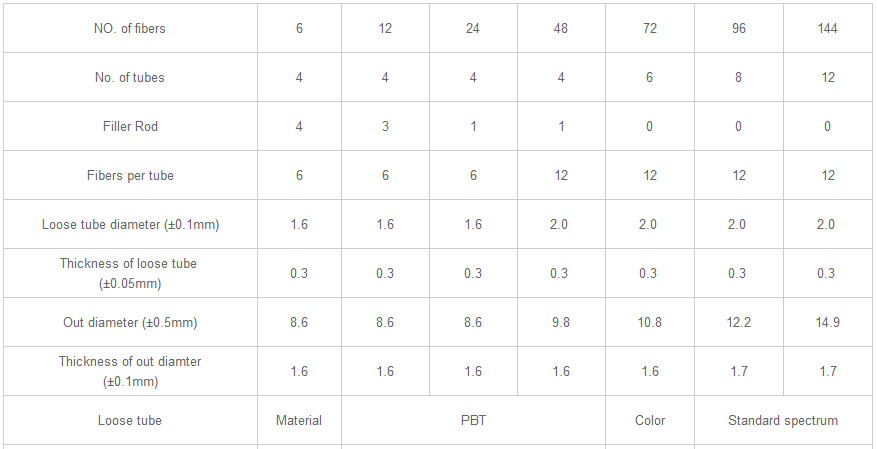

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The Aluminum tape is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath. Characteristics: • Good mechanical and temperature performance. • High strength loose tube that is hydrolysis resistant. • Special tube filling compound ensure a critical protection of fiber. • Crush resistance and flexibility. • PE sheath protects cable from ultraviolet radiation. • Steel wire used as the central strength member. • Loose tube filling compound and 100% cable core filling. Technical Parameters:
