HOME >> products >>Gigabit POE Power over Ethernet Switch

Gigabit POE Power over Ethernet Switch

Product name : Gigabit POE Power over Ethernet Switch Item : LIT-FOA-14 Price :

Details :

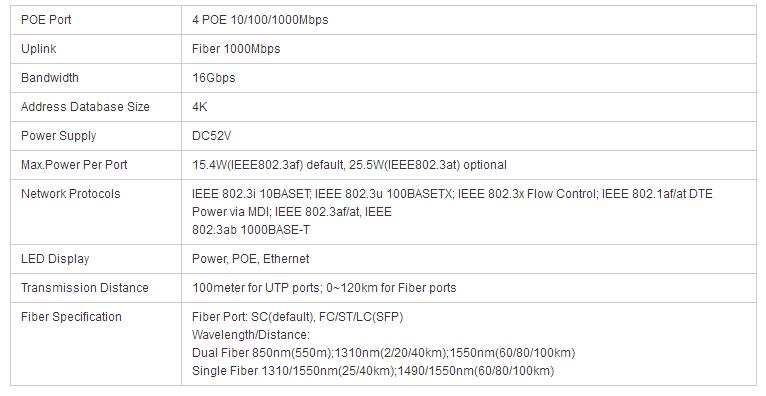

The POE switch provides power and data transmission via Cat cables. POE ports supply power at the standard  of IEEE802.3af/at.Auto-sensing function can supply power to PD device (IEEE802.3af/at standard).  If the PoE device disconnected, it would stop supplying power. The POE switch features simple and reliable design,  automatic identification of PoE supply voltage and power, speed, full duplex and Auto Uplinkcable type. This cost-effective switch can apply to wireless access point (AP) and IP-based surveillance Network solutions.  Feature  ◆ IEEE 802.3af/at power on POE ports  ◆ Supply power to wireless access points and surveillance cameras over Cat cable ◆ POE ports support MDI/MDIX  ◆ Support PoE power up to 15.4W(IEEE802.3af)/25.5W(IEEE802.3at) for PoE ports  ◆ POE Lines: End-Span(12+,36-), Mid-Span(25+,78-)  ◆ Support IEEE 802.3x flow control for Full-duplex Mode and back-pressure for Half-duplex Mode  ◆ LED indicators for monitoring power, link, activity and speed  ◆ Network Media: 10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(≤150m);100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(≤150m);1000BASE-TX: 6 Category and above UTP(≤150m)  ◆ Forwarding Mode: Store-And-Forward  ◆ MTBF: 100,000 hours Application  ◆ Wireless Access Point  ◆ IP Camera ◆ IP Phone  ◆ Computer Networks
